FIXED IND 3.3UH 3.2A 78 MOHM SMD

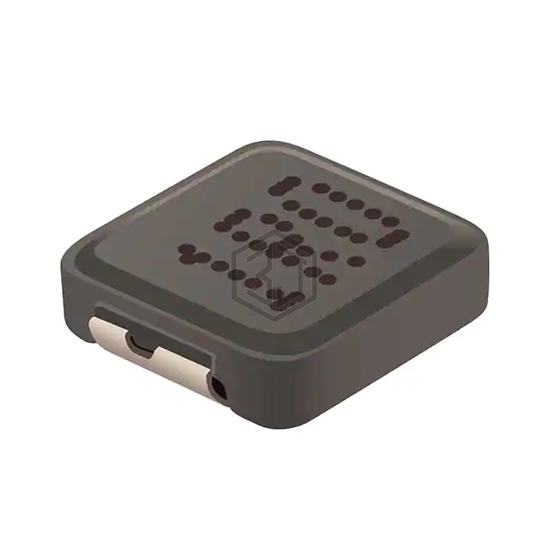

SRP5015TA-3R3M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 3.2A 78 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 3.2 A.
In Stock: 6,748
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | 4.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 78mOhm Max |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 35MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
