FIXED IND 100NH 11.5A 5.5MOHM SM

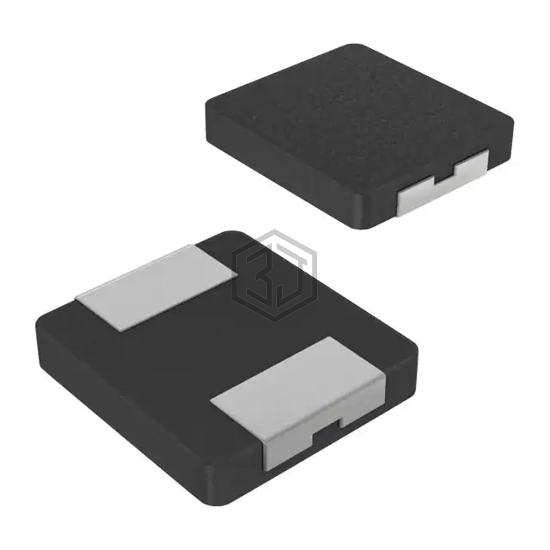

SRP4012TA-R10Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100NH 11.5A 5.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 2-SMD, current rating (amps) 11.5 A.
In Stock: 3,975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 100 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 11.5 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.5mOhm Max |
| Q @ Freq | 5 @ 100kHz |
| Frequency - Self Resonant | 400MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for SRP4012TA-R10Y and get a quote within 24 hours.
