FIXED IND 5.6UH 2.2A 238MOHM SMD

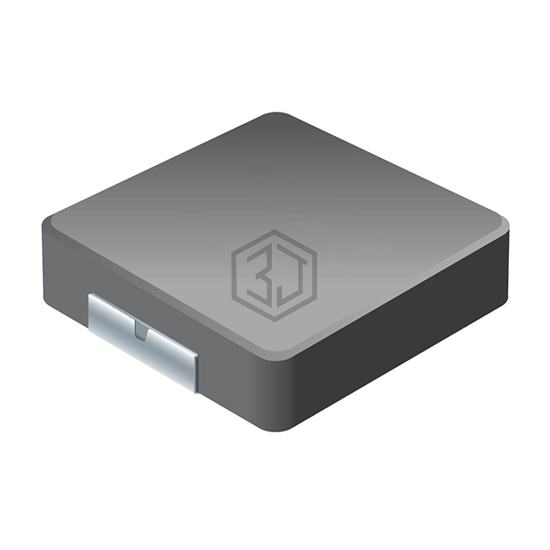

SRP3020TA-5R6M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 5.6UH 2.2A 238MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 2-SMD, current rating (amps) 2.2 A.
In Stock: 219
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 238mOhm Max |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 29MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRP3020TA-5R6M and get a quote within 24 hours.
