FIXED IND 100NH 10A 7 MOHM SMD

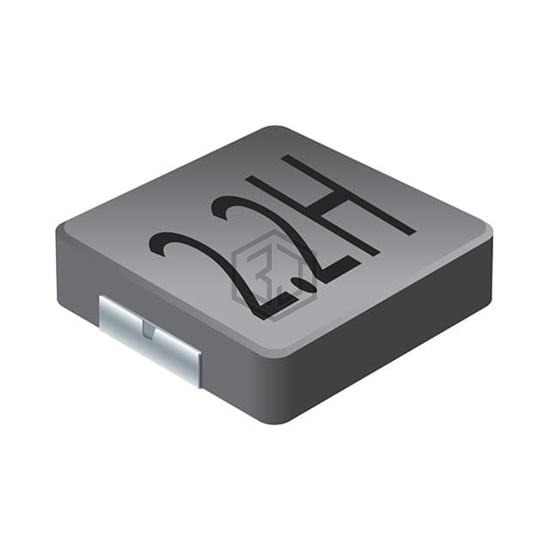

SRP3020C-R10Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100NH 10A 7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 10 A.
In Stock: 1,929
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 100 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 11.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7mOhm Max |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 208MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
