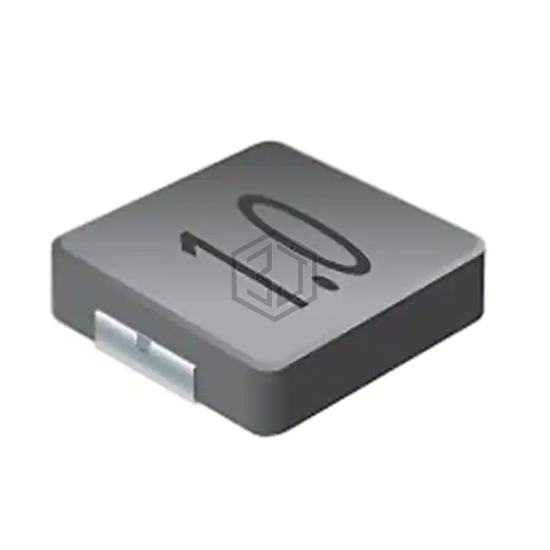

FIXED IND 560NH 4.5A 36 MOHM SMD
SRP3012TA-R56M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 560NH 4.5A 36 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 2-SMD, current rating (amps) 4.5 A.
In Stock: 1,102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.5 A |
| Current - Saturation (Isat) | 6.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 36mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 90MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
