FIXED IND 2.2UH 40A 2.8 MOHM SMD

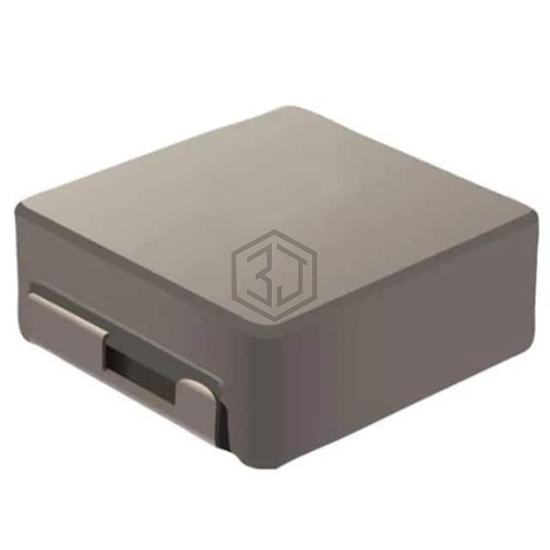

SRP1770C-2R2M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 2.2UH 40A 2.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 40 A.
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 40 A |
| Current - Saturation (Isat) | 45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.8mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 21MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.701" L x 0.665" W (17.80mm x 16.90mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for SRP1770C-2R2M and get a quote within 24 hours.
