IND,16.5X15.5X9.7MM,6.8UH20%,26A

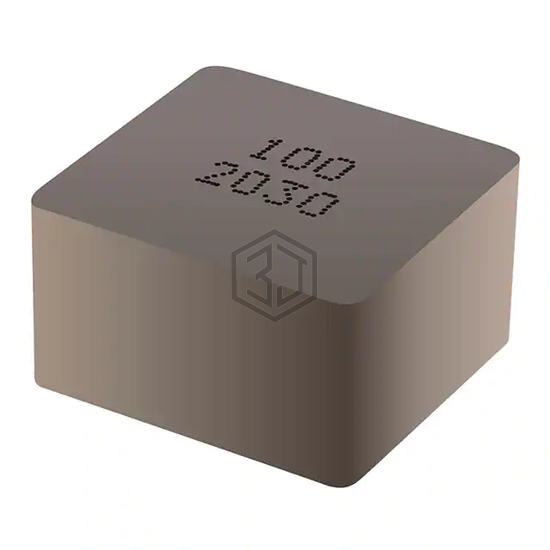

SRP1510CA-6R8M is a Fixed Inductors manufactured by Bourns Inc.. IND,16.5X15.5X9.7MM,6.8UH20%,26A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 26 A.
In Stock: 425
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 26 A |
| Current - Saturation (Isat) | 36A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.6mOhm Max |
| Q @ Freq | 30 @ 100kHz |
| Frequency - Self Resonant | 10MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for SRP1510CA-6R8M and get a quote within 24 hours.
