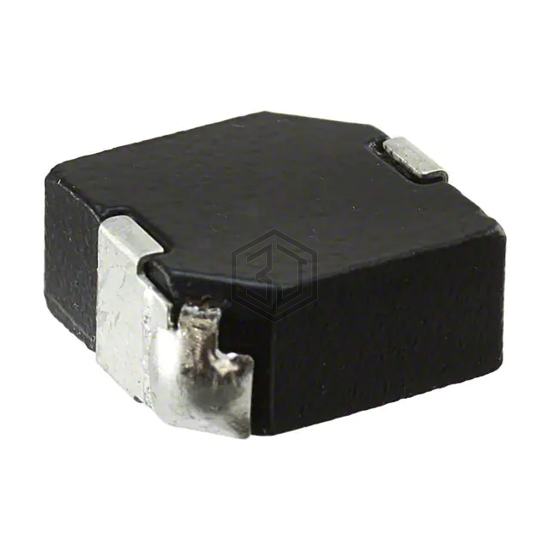

FIXED IND 6.8UH 12A 14 MOHM SMD
SRP1270-6R8M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8UH 12A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 2,512
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 21A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 12MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.539" L x 0.539" W (13.70mm x 13.70mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for SRP1270-6R8M and get a quote within 24 hours.
