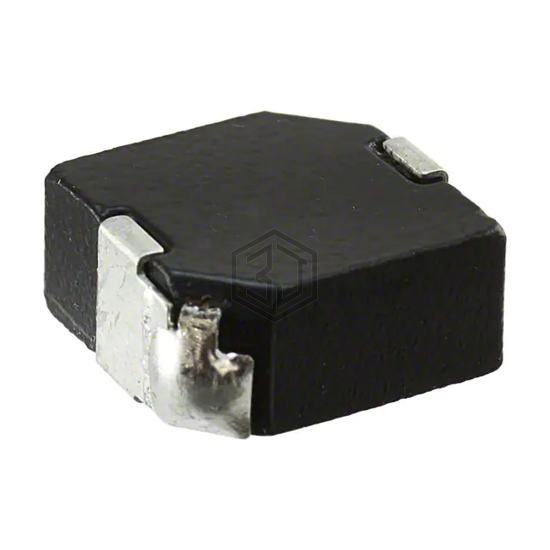

FIXED IND 3.3UH 18A 6.6 MOHM SMD
SRP1270-3R3M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 18A 6.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 18 A.
In Stock: 12,026
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.539" L x 0.539" W (13.70mm x 13.70mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
