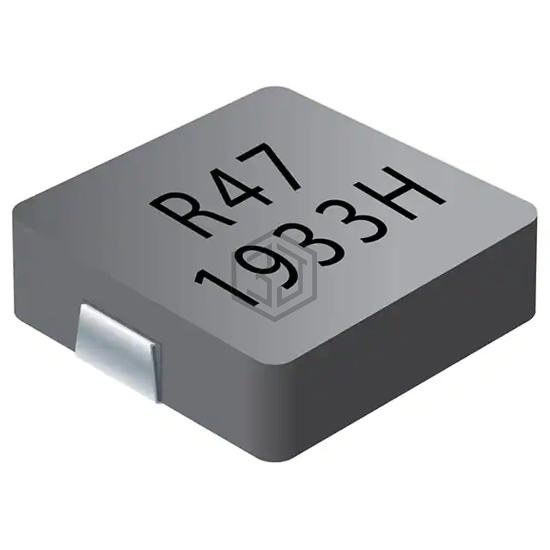

FIXED IND 360NH 41A 0.83MOHM SMD
SRP1245C-R36M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 360NH 41A 0.83MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 41 A.
In Stock: 713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 41 A |
| Current - Saturation (Isat) | 80A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.83mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SRP1245C-R36M and get a quote within 24 hours.
