FIXED IND 220NH 38.5A 0.81 MOHM

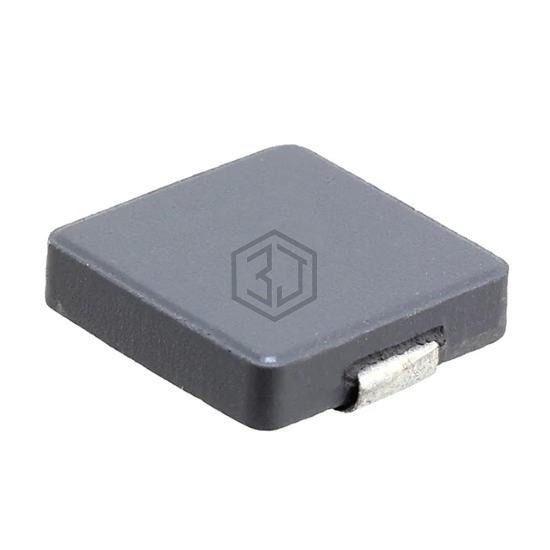

SRP1238A-R22M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 220NH 38.5A 0.81 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 38.5 A.
In Stock: 680
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 38.5 A |
| Current - Saturation (Isat) | 65A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.81mOhm Max |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 125MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for SRP1238A-R22M and get a quote within 24 hours.
