FIXED IND 4.7UH 10A 18.5MOHM SMD

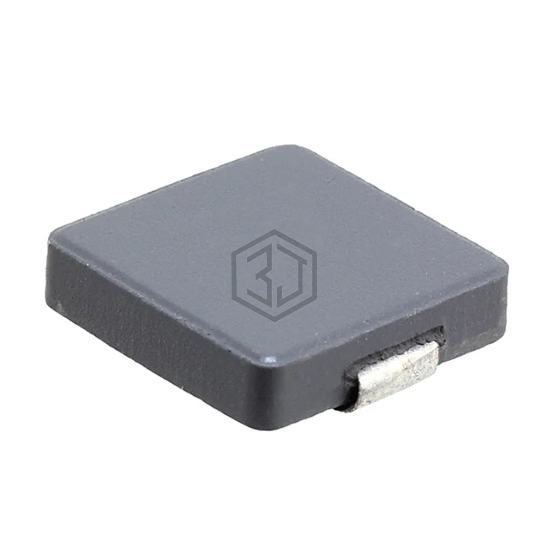

SRP1238A-4R7M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 4.7UH 10A 18.5MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 10 A.
In Stock: 2,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18.5mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 15MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for SRP1238A-4R7M and get a quote within 24 hours.
