FIXED IND 6.8UH 10.5A 22.3 MOHM

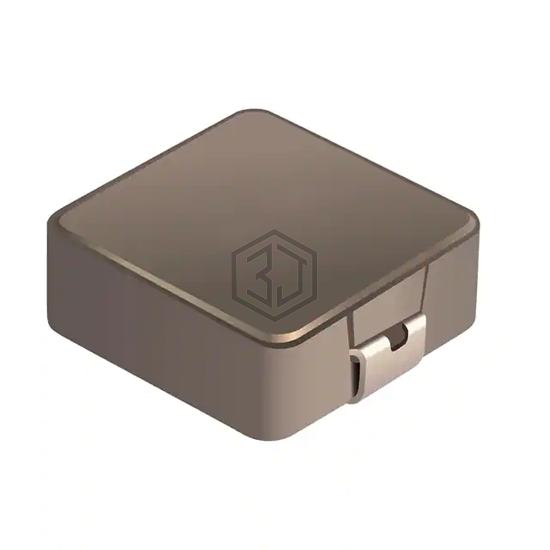

SRP1040VA-6R8M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8UH 10.5A 22.3 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 10.5 A.
In Stock: 917
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10.5 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 22.3mOhm Max |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 12MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
