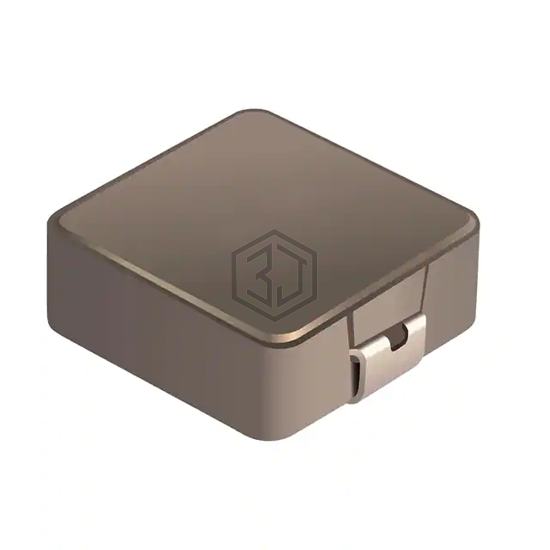

FIXED IND 33UH 5A 117.7MOHM SMD
SRP1040VA-330M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 33UH 5A 117.7MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 5 A.
In Stock: 3,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | 5.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 117.7mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 6MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SRP1040VA-330M and get a quote within 24 hours.
