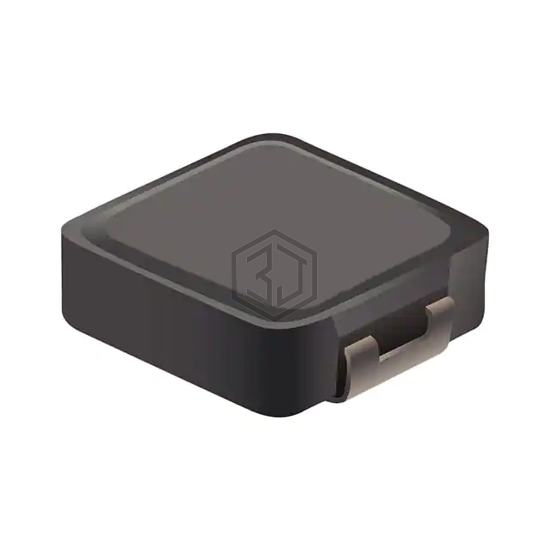

FIXED IND 330NH 38A 1.2 MOHM SMD
SRP1038C-R33M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 330NH 38A 1.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 38 A.
In Stock: 132
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 38 A |
| Current - Saturation (Isat) | 70A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.2mOhm Max |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 88MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SRP1038C-R33M and get a quote within 24 hours.
