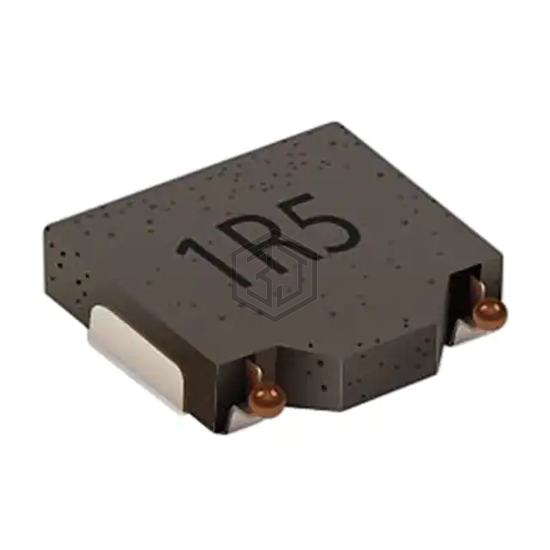

FIXED IND 1.5UH 6A 32.8 MOHM SMD
SRP0612-1R5K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1.5UH 6A 32.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6 A.
In Stock: 2,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 1.5 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 32.8mOhm Max |
| Q @ Freq | 42 @ 7.96MHz |
| Frequency - Self Resonant | 22MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.264" W (7.10mm x 6.70mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for SRP0612-1R5K and get a quote within 24 hours.
