FIXED IND 1UH 4.4A 54 MOHM SMD

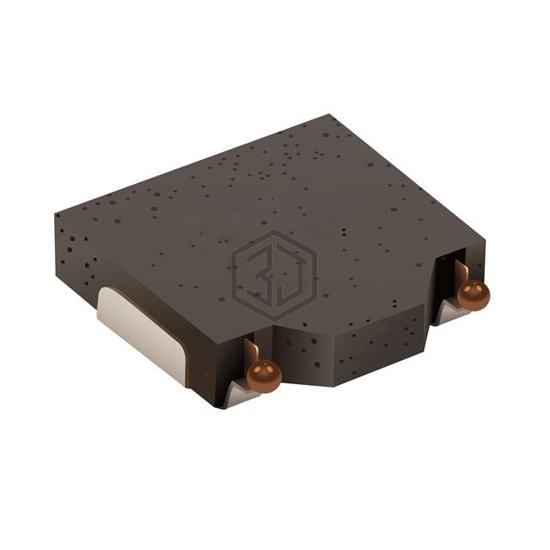

SRP0610-1R0K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1UH 4.4A 54 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.4 A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | - |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4.4 A |
| Current - Saturation (Isat) | 8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 54mOhm Max |
| Q @ Freq | 49 @ 7.96MHz |
| Frequency - Self Resonant | 43MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.264" W (7.10mm x 6.70mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for SRP0610-1R0K and get a quote within 24 hours.
