FIXED IND 680NH 4.6A 43.5MOHM SM

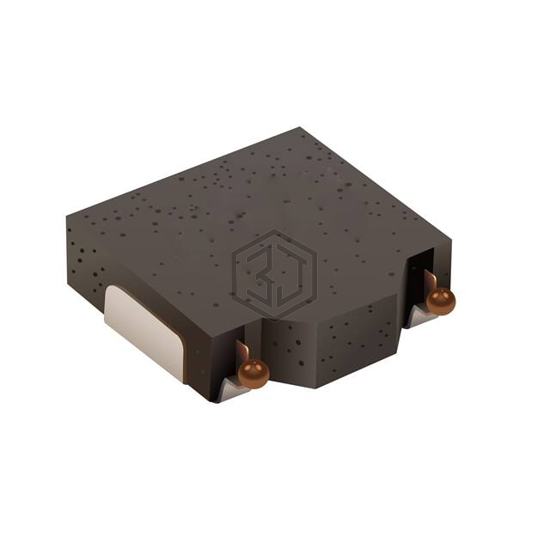

SRP0510-R68K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 680NH 4.6A 43.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.6 A.
In Stock: 295
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | - |
| Material - Core | Metal |
| Inductance | 680 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | 8.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 43.5mOhm Max |
| Q @ Freq | 19 @ 25.2MHz |
| Frequency - Self Resonant | 72MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for SRP0510-R68K and get a quote within 24 hours.
