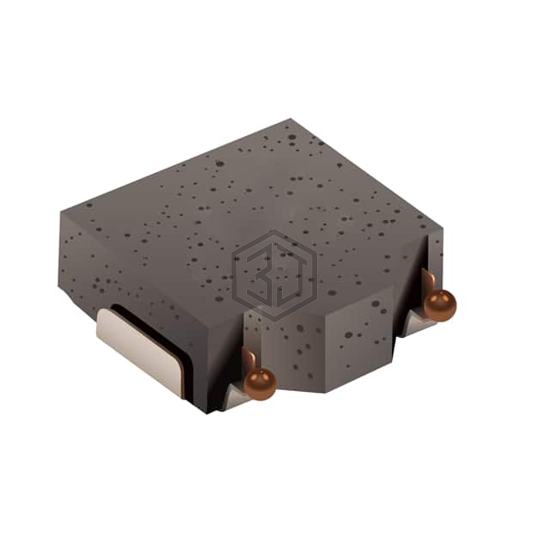

FIXED IND 1.5UH 3.9A 64 MOHM SMD
SRP0410-1R5K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1.5UH 3.9A 64 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.9 A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | - |
| Material - Core | Metal |
| Inductance | 1.5 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3.9 A |
| Current - Saturation (Isat) | 4.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 64mOhm Max |
| Q @ Freq | 35 @ 7.96MHz |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for SRP0410-1R5K and get a quote within 24 hours.
