FIXED IND 3.3UH 2.5A 119MOHM SMD

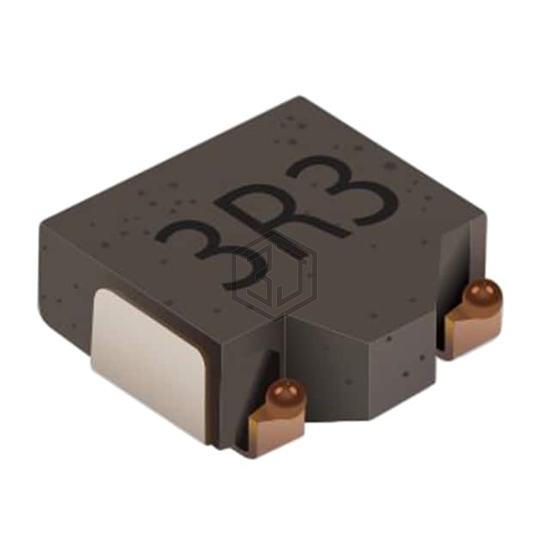

SRP0320-3R3K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 2.5A 119MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.5 A.
In Stock: 1,748
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 3.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 119mOhm Max |
| Q @ Freq | 34 @ 7.96MHz |
| Frequency - Self Resonant | 36MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.134" L x 0.122" W (3.40mm x 3.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRP0320-3R3K and get a quote within 24 hours.
