IND,6X6X4.7MM,2.2UH30%,4.4A,SEMI

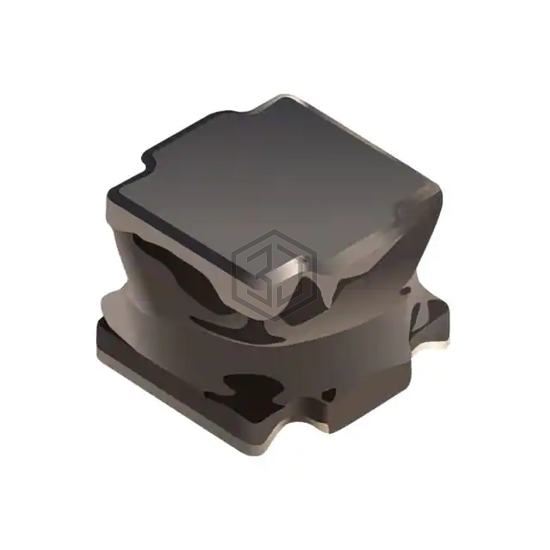

SRN6045HA-2R2Y is a Fixed Inductors manufactured by Bourns Inc.. IND,6X6X4.7MM,2.2UH30%,4.4A,SEMI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 4.4 A.
In Stock: 993
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.4 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | 17 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for SRN6045HA-2R2Y and get a quote within 24 hours.
