IND,6X6X4.7MM,1UH30%,6.5A,SEMI-S

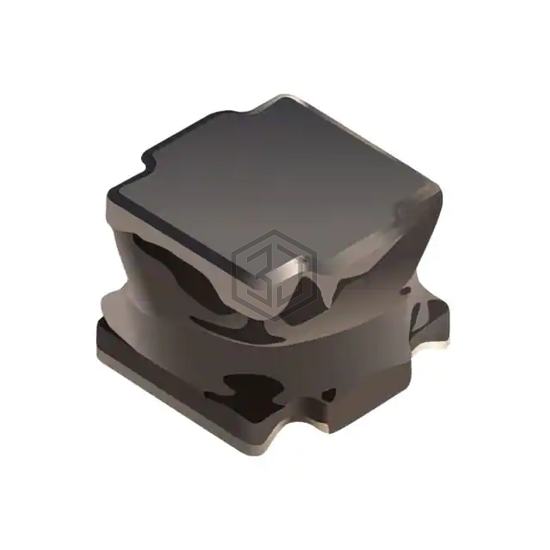

SRN6045HA-1R0Y is a Fixed Inductors manufactured by Bourns Inc.. IND,6X6X4.7MM,1UH30%,6.5A,SEMI-S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 6.5 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 14.5A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 9mOhm Max |
| Q @ Freq | 17 @ 7.96MHz |
| Frequency - Self Resonant | 80MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for SRN6045HA-1R0Y and get a quote within 24 hours.
