FIXED IND 8.2UH 2.7A 55 MOHM SMD

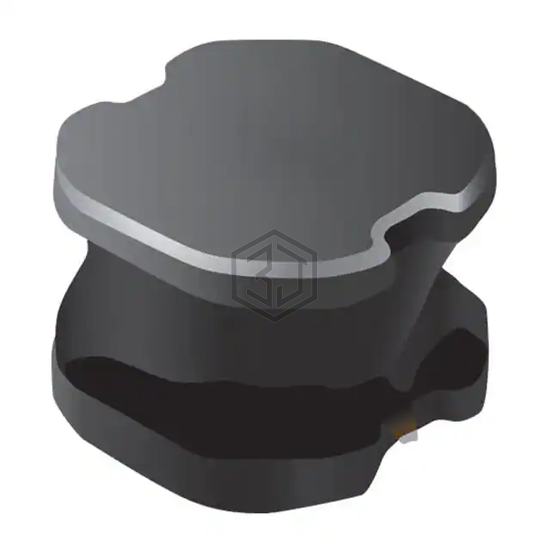

SRN6045-8R2Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 8.2UH 2.7A 55 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 36,922
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 3.3A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 55mOhm Max |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for SRN6045-8R2Y and get a quote within 24 hours.
