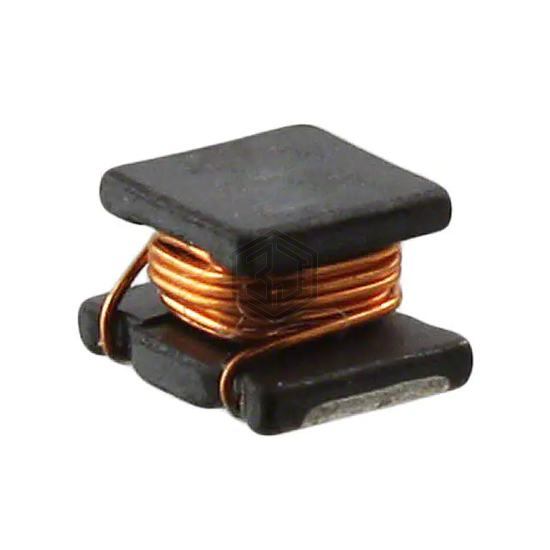

FIXED IND 10UH 1.9A 78 MOHM SMD
SRN6028-100M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 1.9A 78 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.9 A.
In Stock: 5,284
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 1.9A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 78mOhm Max |
| Q @ Freq | 18 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for SRN6028-100M and get a quote within 24 hours.
