FIXED IND 2.2UH 3.8A 21 MOHM SMD

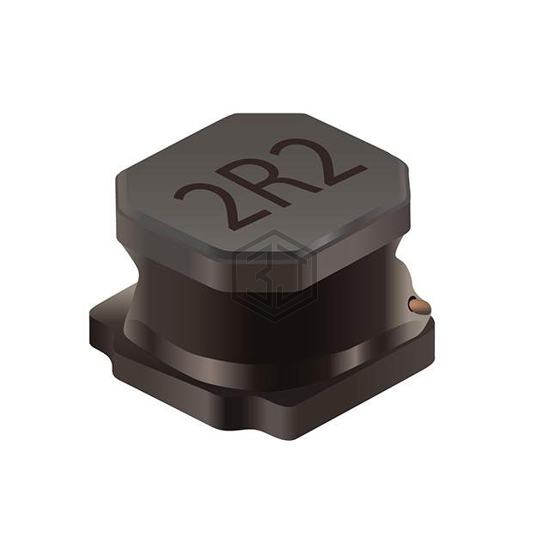

SRN5040TA-2R2M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 2.2UH 3.8A 21 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.8 A.
In Stock: 1,459
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 5.7A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 21mOhm |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 62MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.195" L x 0.195" W (4.95mm x 4.95mm) |
| Height - Seated (Max) | 0.161" (4.10mm) |
Submit your RFQ for SRN5040TA-2R2M and get a quote within 24 hours.
