FIXED IND 6.8UH 2.3A 59 MOHM SMD

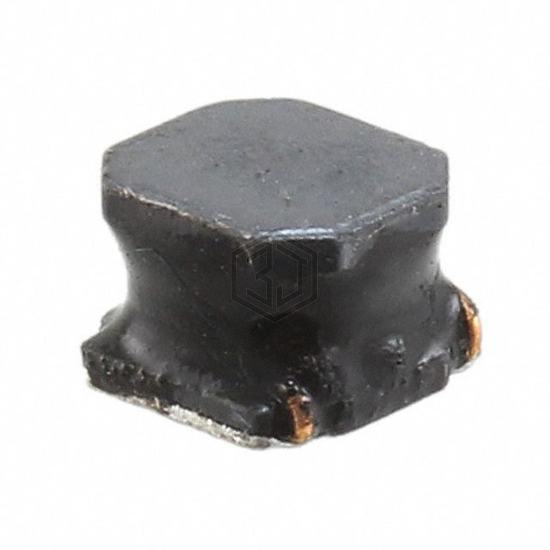

SRN5040-6R8M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8UH 2.3A 59 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.3 A.
In Stock: 2,230
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 59mOhm Max |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | 21MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SRN5040-6R8M and get a quote within 24 hours.
