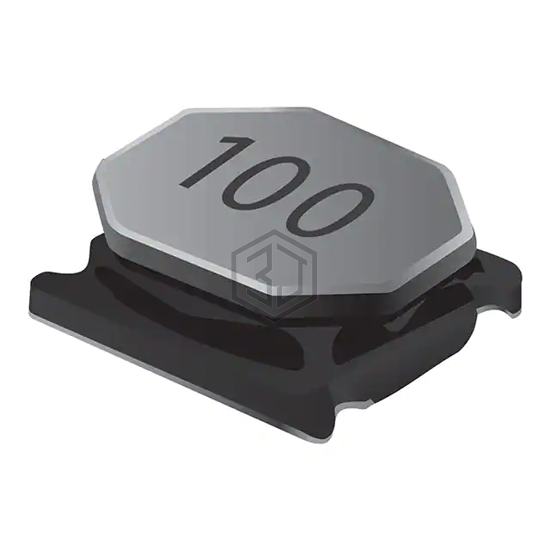

FIXED IND 33UH 800MA 335MOHM SMD
SRN5020TA-330M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 33UH 800MA 335MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 335mOhm |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 20MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRN5020TA-330M and get a quote within 24 hours.
