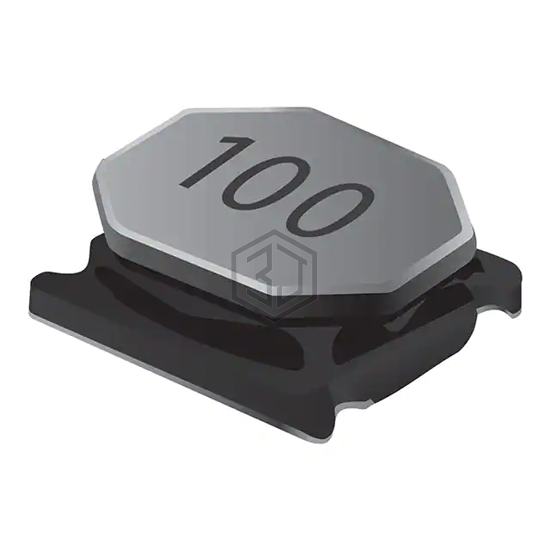

FIXED IND 1.5UH 3.5A 25MOHM SMD
SRN5020TA-1R5Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1.5UH 3.5A 25MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 1,620
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 4.5A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 25mOhm |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 112MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
