FIXED IND 5.6UH 1.8A 106MOHM SMD

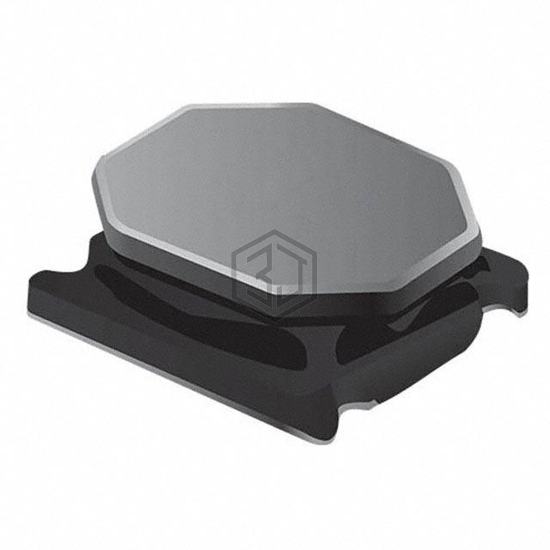

SRN5020-5R6M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 5.6UH 1.8A 106MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.8 A.
In Stock: 3,829
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 106mOhm Max |
| Q @ Freq | 11 @ 7.96MHz |
| Frequency - Self Resonant | 28MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRN5020-5R6M and get a quote within 24 hours.
