FIXED IND 10UH 1.2A 150 MOHM SMD

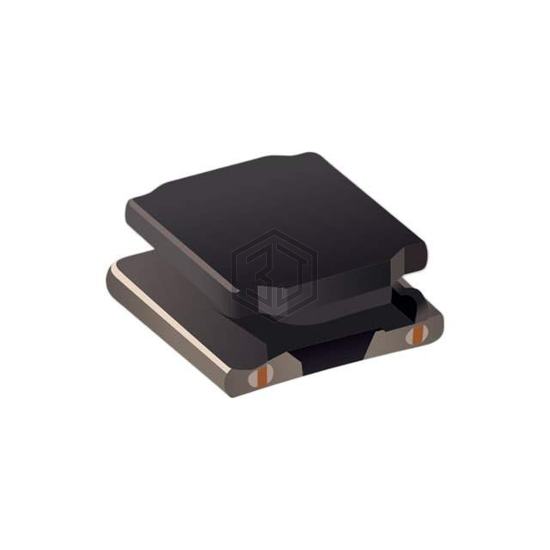

SRN4018TA-100M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 1.2A 150 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 3,562
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 150mOhm |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 40MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for SRN4018TA-100M and get a quote within 24 hours.
