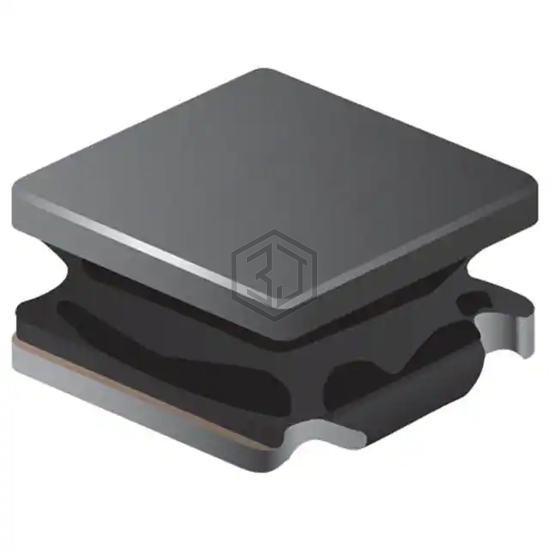

FIXED IND 100UH 290MA 2.92OHM SM
SRN3015-101M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100UH 290MA 2.92OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 290 mA.
In Stock: 36,432
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 290 mA |
| Current - Saturation (Isat) | 270mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 2.92Ohm Max |
| Q @ Freq | 27 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for SRN3015-101M and get a quote within 24 hours.
