FIXED IND 3.3UH 850MA 300MOHM SM

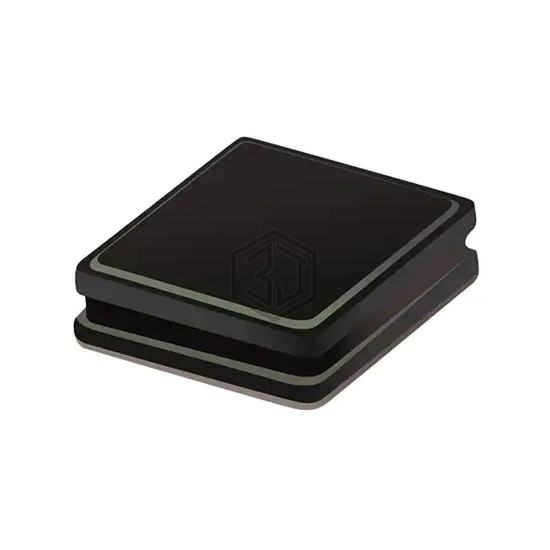

SRN2508A-3R3M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 850MA 300MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 850 mA.
In Stock: 85
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 300mOhm |
| Q @ Freq | 10 @ 1MHz |
| Frequency - Self Resonant | 110MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
Submit your RFQ for SRN2508A-3R3M and get a quote within 24 hours.
