IND,2X1.2X1.2MM,4.7UH10%,0.84A,S

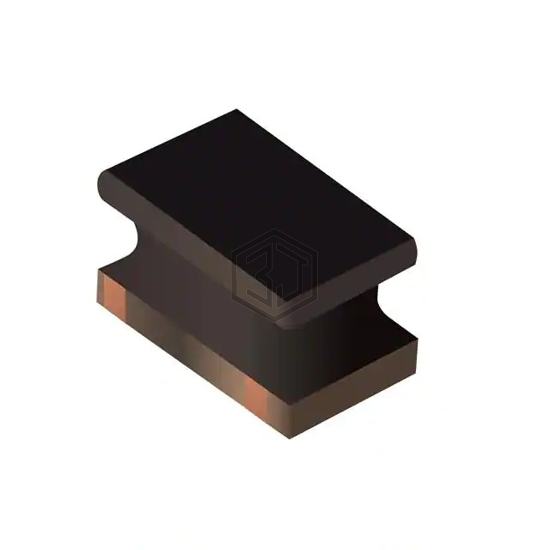

SRN2012T-4R7K is a Fixed Inductors manufactured by Bourns Inc.. IND,2X1.2X1.2MM,4.7UH10%,0.84A,S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 840 mA.
In Stock: 1,826
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 840 mA |
| Current - Saturation (Isat) | 520mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 360mOhm |
| Q @ Freq | 14 @ 7.9MHz |
| Frequency - Self Resonant | 65MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
