IND,2X1.2X1.2MM,15UH10%,0.38A,SE

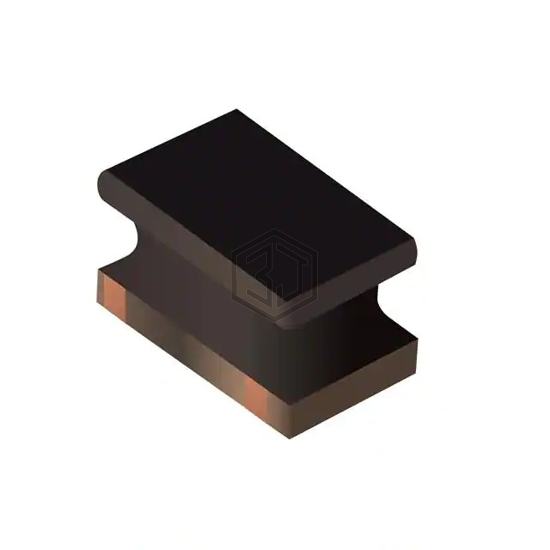

SRN2012T-150K is a Fixed Inductors manufactured by Bourns Inc.. IND,2X1.2X1.2MM,15UH10%,0.38A,SE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 380 mA.
In Stock: 1,631
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 380 mA |
| Current - Saturation (Isat) | 300mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 1.4Ohm |
| Q @ Freq | 15 @ 2.5MHz |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
