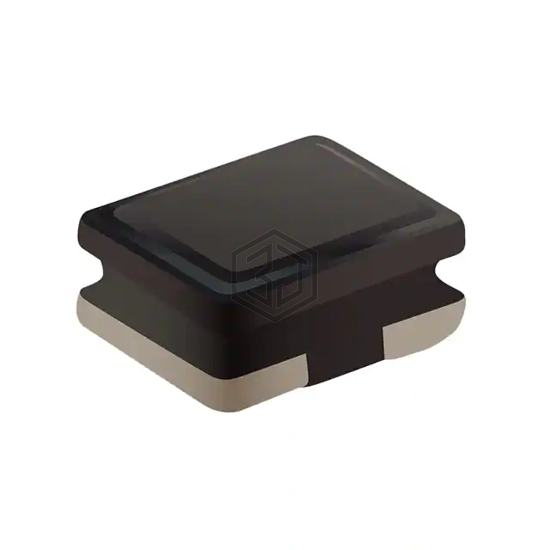

FIXED IND 330NH 2.1A 28MOHM SMD
SRN2009T-R33M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 330NH 2.1A 28MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 2.1 A.
In Stock: 652
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.1 A |
| Current - Saturation (Isat) | 2.1A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 28mOhm |
| Q @ Freq | 30 @ 1MHz |
| Frequency - Self Resonant | 400MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for SRN2009T-R33M and get a quote within 24 hours.
