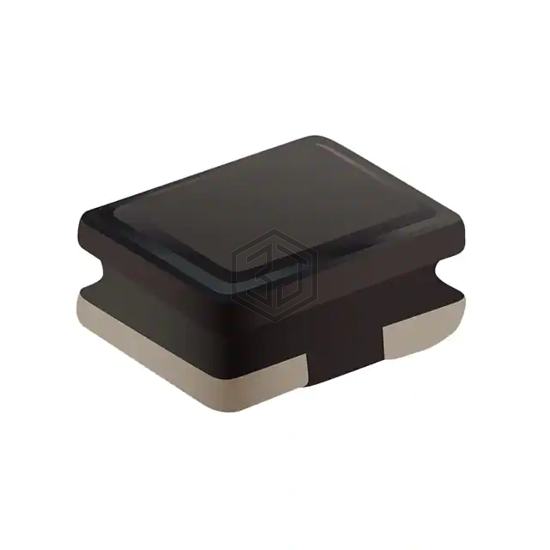

FIXED IND 6.8UH 650MA 550MOHM SM
SRN2009T-6R8M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8UH 650MA 550MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 650 mA.
In Stock: 1,903
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 650mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 550mOhm |
| Q @ Freq | 15 @ 1MHz |
| Frequency - Self Resonant | 80MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
