FIXED IND 2.2UH 900MA 160MOHM SM

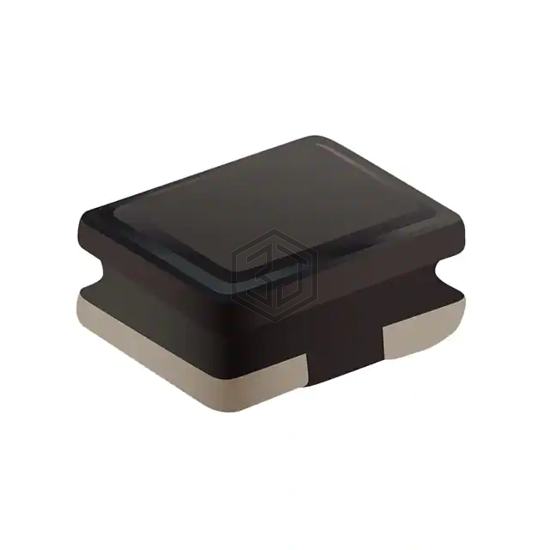

SRN2009T-2R2M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 2.2UH 900MA 160MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 900 mA.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 160mOhm |
| Q @ Freq | 16 @ 1MHz |
| Frequency - Self Resonant | 150MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
