INDUCT ARRAY 2 COIL 470NH SMD

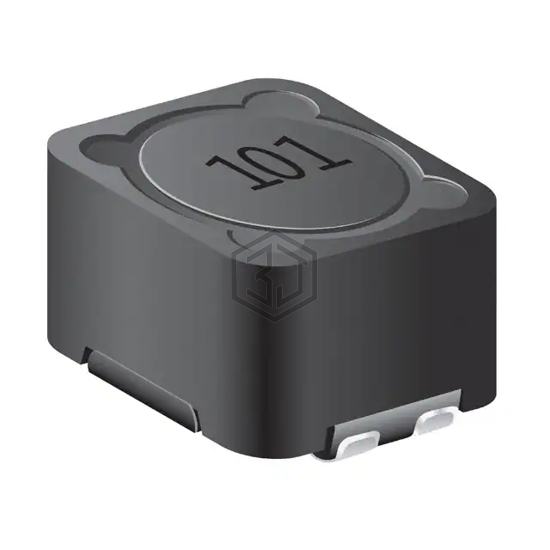

SRF1280-R47Y is a Arrays, Signal Transformers manufactured by Bourns Inc.. INDUCT ARRAY 2 COIL 470NH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 1,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 470 nH |
| Inductance - Connected In Series | 1.88 µH |
| Tolerance | ±30% |
| Current Rating - Parallel | 17.9 A |
| Current Rating - Series | 8.94 A |
| Current Saturation - Parallel | 56 A |
| Current Saturation - Series | 28 A |
| DC Resistance (DCR) - Parallel | 5.5mOhm Max |
| DC Resistance (DCR) - Series | 21.6mOhm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.315" (8.00mm) |
Submit your RFQ for SRF1280-R47Y and get a quote within 24 hours.
