INDUCT ARRAY 2 COIL 22UH SMD

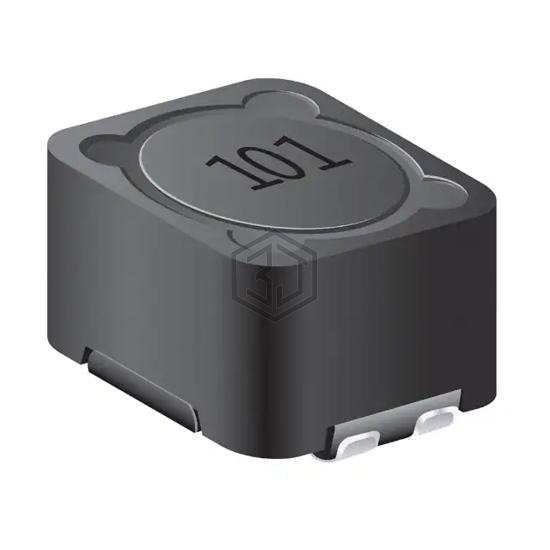

SRF1280-220M is a Arrays, Signal Transformers manufactured by Bourns Inc.. INDUCT ARRAY 2 COIL 22UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 10,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 22 µH |
| Inductance - Connected In Series | 88 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 4 A |
| Current Rating - Series | 2 A |
| Current Saturation - Parallel | 7.57 A |
| Current Saturation - Series | 3.78 A |
| DC Resistance (DCR) - Parallel | 50.3mOhm Max |
| DC Resistance (DCR) - Series | 192mOhm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.315" (8.00mm) |
Submit your RFQ for SRF1280-220M and get a quote within 24 hours.
