FIXED IND 5.6UH 7.5A 23 MOHM SMD

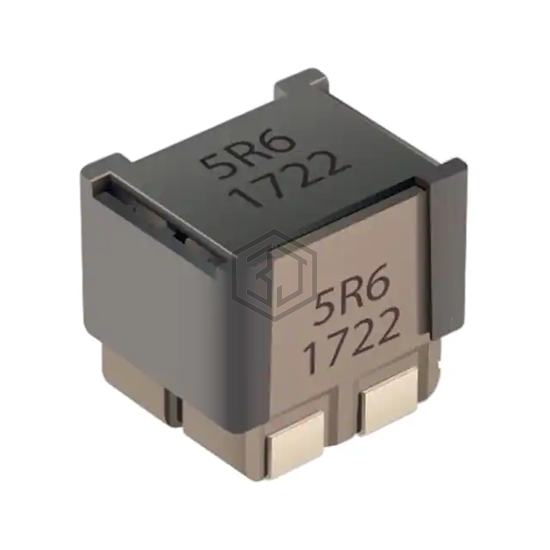

SRF1010DA-5R6M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 5.6UH 7.5A 23 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 7.5 A.
In Stock: 4,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.5 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.378" W (12.00mm x 9.60mm) |
| Height - Seated (Max) | 0.457" (11.60mm) |
Submit your RFQ for SRF1010DA-5R6M and get a quote within 24 hours.
