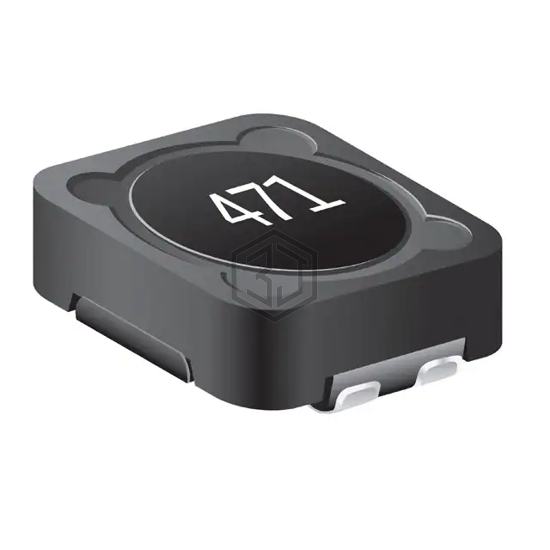

INDUCT ARRAY 2 COIL 82UH SMD
SRF0703-820M is a Arrays, Signal Transformers manufactured by Bourns Inc.. INDUCT ARRAY 2 COIL 82UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.299" L x 0.299" W (7.60mm x 7.60mm).
In Stock: 490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 82 µH |
| Inductance - Connected In Series | 328 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 860 mA |
| Current Rating - Series | 430 mA |
| Current Saturation - Parallel | 890 mA |
| Current Saturation - Series | 440 mA |
| DC Resistance (DCR) - Parallel | 610mOhm Max |
| DC Resistance (DCR) - Series | 2.28Ohm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.142" (3.60mm) |
Submit your RFQ for SRF0703-820M and get a quote within 24 hours.
