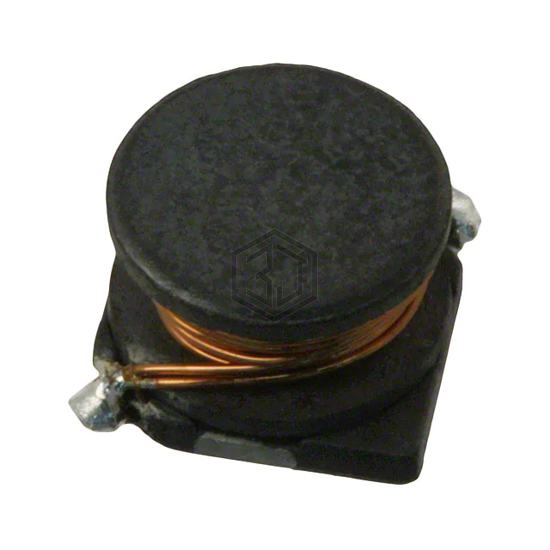

FIXED IND 680UH 300MA 2.4OHM SMD
SDR7045-681K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 680UH 300MA 2.4OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 300 mA.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | 260mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.4Ohm Max |
| Q @ Freq | 18 @ 796kHz |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SDR7045-681K and get a quote within 24 hours.
