FIXED IND 68UH 400MA 860MOHM SMD

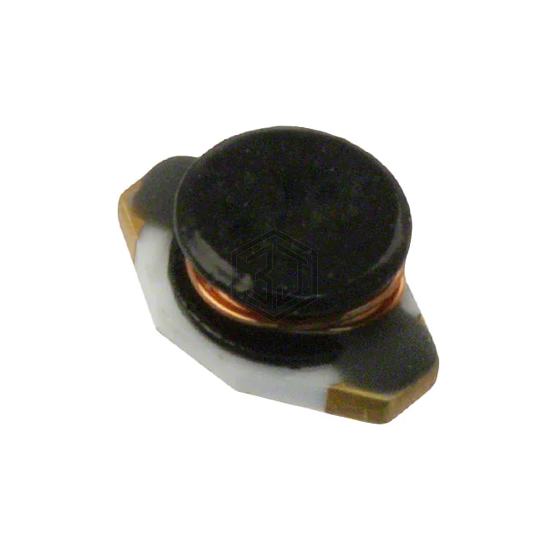

SDR6603-680M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 68UH 400MA 860MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 400 mA.
In Stock: 86
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | 400mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 860mOhm Max |
| Q @ Freq | 18 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
Submit your RFQ for SDR6603-680M and get a quote within 24 hours.
