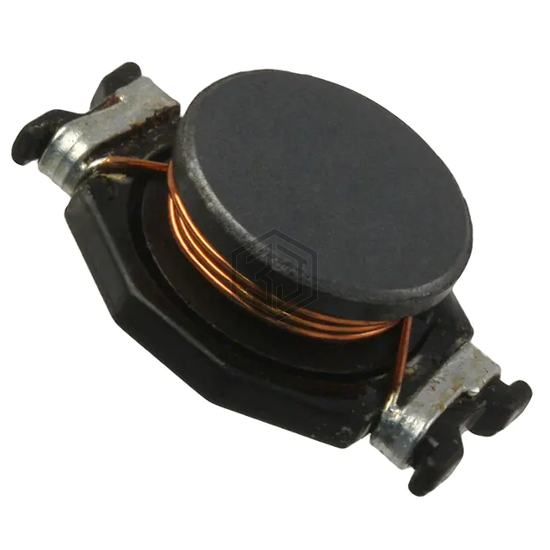

FIXED IND 33UH 3.4A 58.4MOHM SMD
SDR2207-330YL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 33UH 3.4A 58.4MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.4 A.
In Stock: 792
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 58.4mOhm Max |
| Q @ Freq | 27 @ 3MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) |
Submit your RFQ for SDR2207-330YL and get a quote within 24 hours.
