FIXED IND 470UH 800MA 820MOHM SM

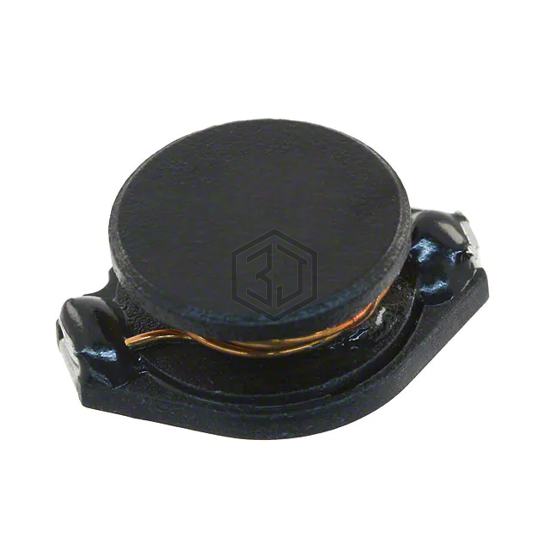

SDR1806-471KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 470UH 800MA 820MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 959
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 820mOhm Max |
| Q @ Freq | 15 @ 796kHz |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Height - Seated (Max) | 0.272" (6.90mm) |
Submit your RFQ for SDR1806-471KL and get a quote within 24 hours.
