FIXED IND 47UH 2.7A 82 MOHM SMD

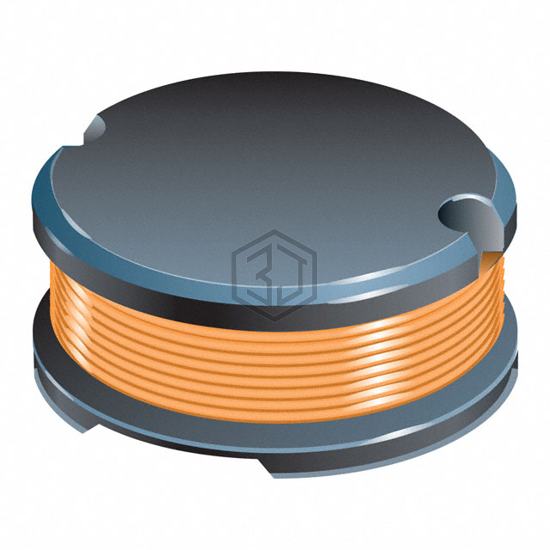

SDR1307A-470K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 47UH 2.7A 82 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 4.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 82mOhm Max |
| Q @ Freq | 24 @ 2.52MHz |
| Frequency - Self Resonant | 7.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.287" (7.30mm) |
Submit your RFQ for SDR1307A-470K and get a quote within 24 hours.
