FIXED IND 47UH 2.2A 170 MOHM SMD

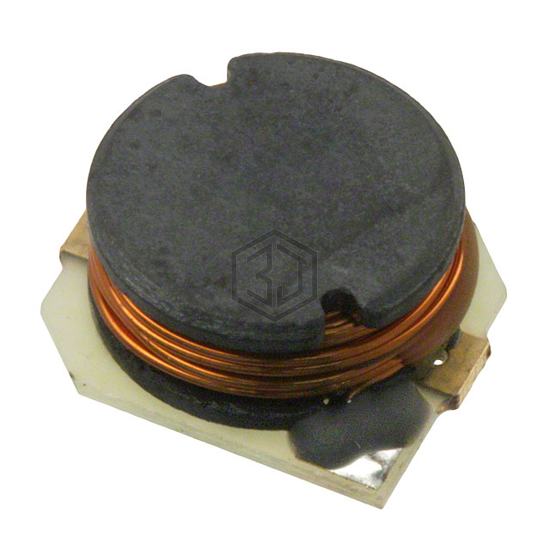

SDR1105-470KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 47UH 2.2A 170 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.2 A.
In Stock: 538
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | 4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SDR1105-470KL and get a quote within 24 hours.
