FIXED IND 10UH 3.2A 64 MOHM SMD

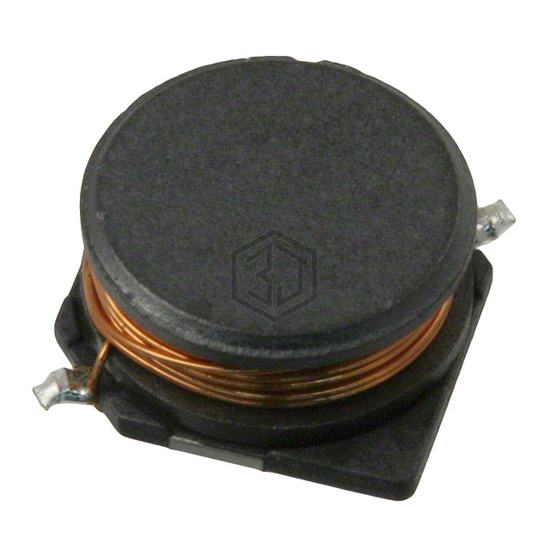

SDR1045-100M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 3.2A 64 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.2 A.
In Stock: 722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | 3.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 64mOhm Max |
| Q @ Freq | 26 @ 2.52MHz |
| Frequency - Self Resonant | 27.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SDR1045-100M and get a quote within 24 hours.
