FIXED IND 68UH 380MA 900MOHM SMD

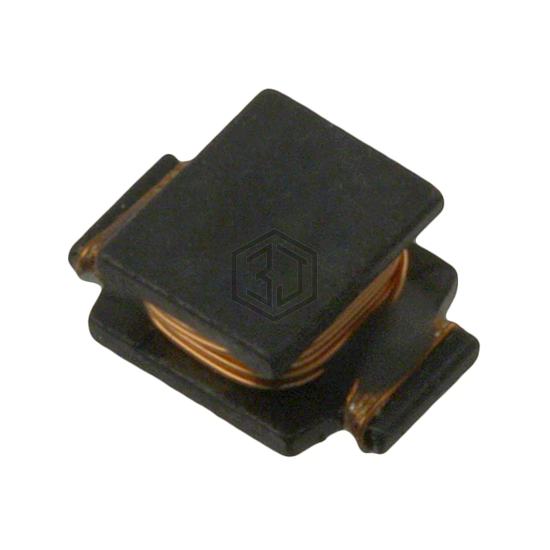

SDR0703-680KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 68UH 380MA 900MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 380 mA.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 380 mA |
| Current - Saturation (Isat) | 560mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 900mOhm Max |
| Q @ Freq | 18 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.256" L x 0.177" W (6.50mm x 4.50mm) |
| Height - Seated (Max) | 0.106" (2.70mm) |
Submit your RFQ for SDR0703-680KL and get a quote within 24 hours.
