FIXED IND 33UH 880MA 250MOHM SMD

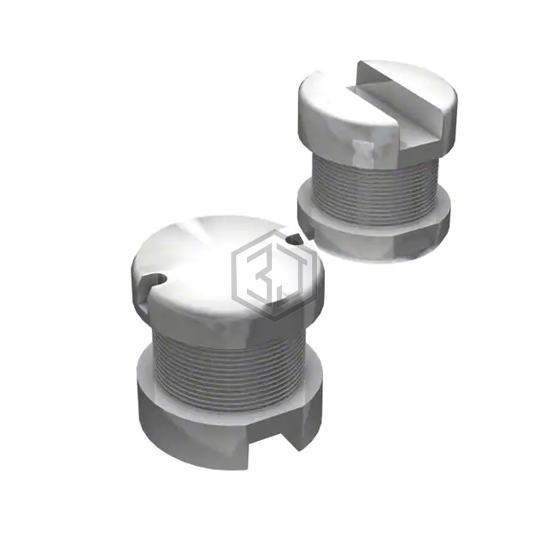

SDR0604-330KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 33UH 880MA 250MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 880 mA.
In Stock: 4,312
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 880 mA |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 24 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SDR0604-330KL and get a quote within 24 hours.
